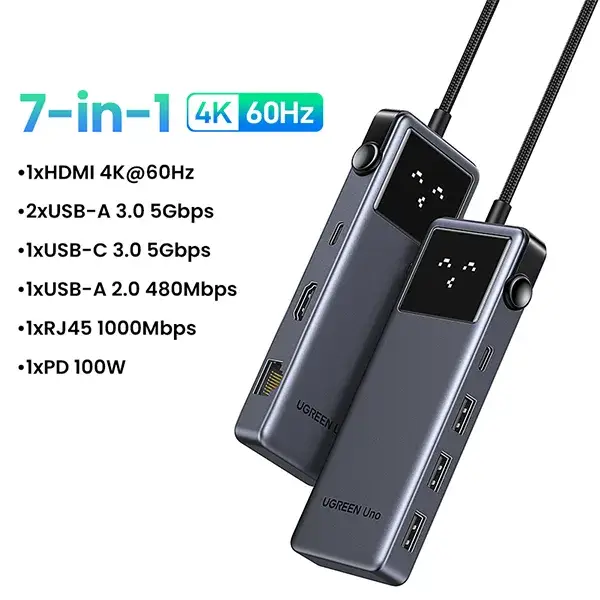

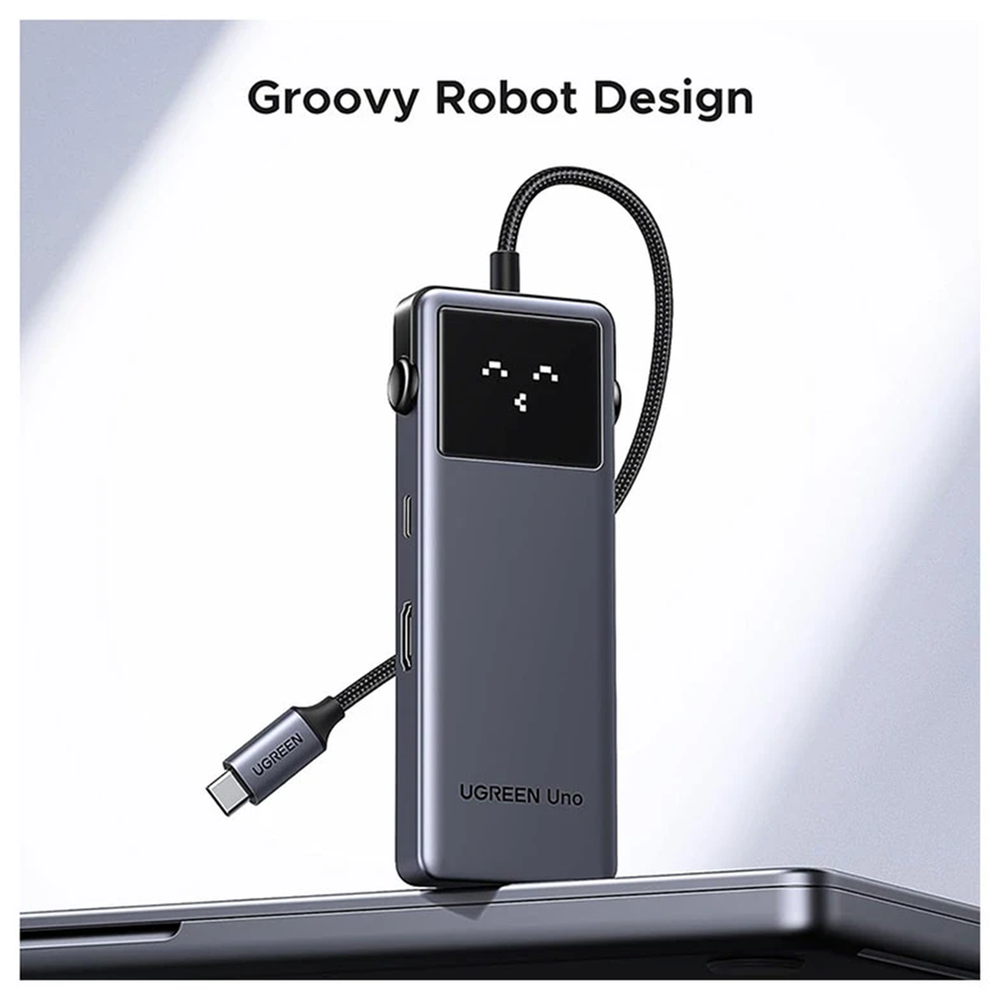

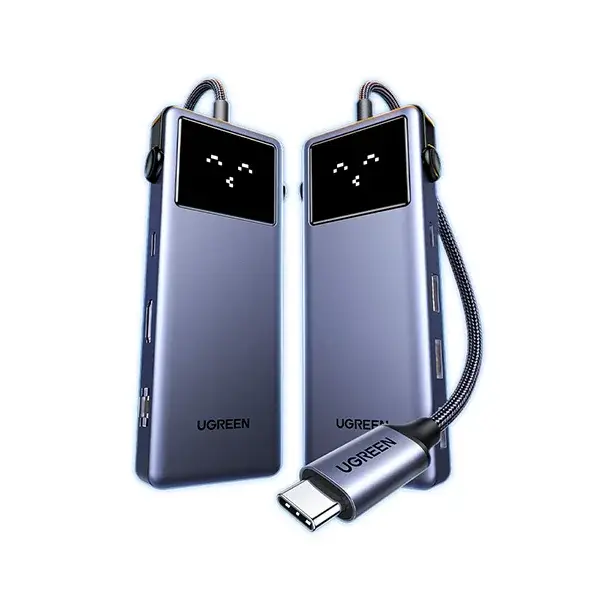

UGREEN 7-in-1 Type-C Multifunction Hub CM888

Built-in Cable:
– Length: 20 cm
– Material: Tin-plated copper
– Conductor: 34 AWG (7/0.06T)

Input Ports
1 × USB-C Male: Connects to main devices (laptops, tablets, smartphones).
– Standard: USB 3.2 Gen 1 (5Gbps, backward compatible with USB 2.0/1.1)
– Video Output: Up to 4K@60Hz with HDR support
– Power Delivery: PD 3.0, up to 85W charging

1 × USB-C PD Female: For PD charger connection
– Supports PD 3.0, up to 100W (20V/5A)
– Dynamic power management based on input range

Output Ports:
1 × HDMI Female: HDMI 2.0, supports up to 4K@60Hz, HDR, no CEC/ARC support
2 × USB-A 3.0 Female: 5Gbps transfer speed, backward compatible with USB 2.0/1.1
1 × USB-C 3.0 Female: 5Gbps transfer speed, backward compatible with USB 2.0/1.1
1 × USB-A 2.0 Female: 480Mbps transfer speed, backward compatible with USB 1.1
1 × RJ45 Ethernet Port: 1000Mbps, backward compatible with 100M/10M, supports IEEE 802.3 standards

Performance & Compatibility:
Video Formats: RGB 8/10/12 bpc, YCbCr (444/422/420)
Audio Formats: LPCM, DTS, DTS-HD, Dolby TrueHD, Dolby Digital/Plus, Dolby Atmos
Sampling Rate: Up to 192kHz, 24-bit
Supported Modes: Mirror (A+A) / Extend (A+B)
OS Compatibility: Windows, macOS, Linux, iOS
Driver Requirement: Plug and Play (no drivers needed)
Supported Devices: Nintendo Switch, Steam Deck, ROG Ally, Lenovo Legion Go

Power & Thermal:
Power Consumption: No-load ≈ 1.42W / Full-load ≈ 6.18W
Operating Temperature: 0°C–40°C
Storage Temperature: -10°C–60°C
Surface Temperature: Up to 45.7°C under full load

Other Details:
Indicator: White LED
No physical buttons
No variable refresh rate or USB-C extension support
Supports firmware upgrades (HDMI chip via Windows tool “Bulldog Aux_Update”)

01-Year Brand Warranty
